Louet Standard Drum Carder

Product Details

The Louet Standard Drum Carder is a workhorse. The diameter of the drum is 10" and the width is 7". The carder clamps to a table and comes already permanently adjusted for you. The carder is designed to accommodate fine to medium fiber lengths and the intermeshing teeth allow you to card fibers without pre-teasing.. The teeth on the carder are 3/8" deep and a batt of about an ounce can be produced. It is great to card batts in layers for felt making and color blending can be done with success as well. The carder clamps to a table and comes already permanently adjusted for you.

Louet Carders have enclosed gearboxes that assures smooth carding operation, while the extra high, flexible, teeth allow for a heavier batt than other drum carders as well as a high carding efficiency. Since the Louet drum carder uses a gear drive, there are no belts to slip or wear out.

Easy to use, the these carding machines have stood the test of time.

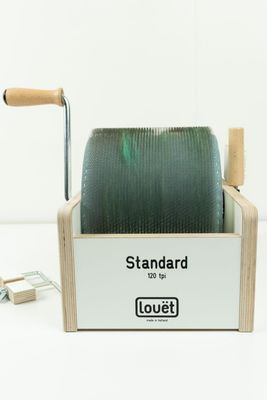

An upgrade for 2025 is that there now is an Extra Fine Carding Cloth, giving you three cloth options to suit every fiber type. The extra-fine carding cloth (120 TPI) is perfect for the most delicate materials—think superfine merino, silk, and laceweight alpaca. If you’re working with fine but slightly sturdier fibers, the fine carding cloth (72 TPI) handles breeds like alpaca and Bluefaced Leicester with ease. And for those robust longwools—Romney, Corriedale, and the like—the coarse carding cloth (46 TPI) provides the teeth spacing you need for efficient processing.

Fully assembled.

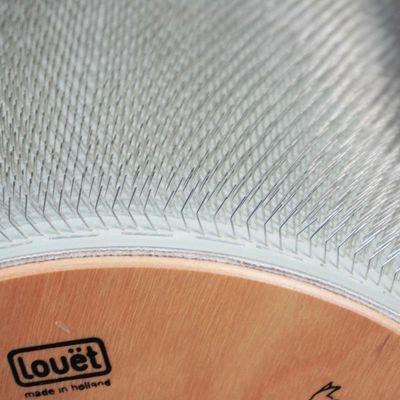

An instruction manual written by well known author and fiber artist Deb Menz is included with all Louet Drum Carders. Louet Drum Carders are made of laminated birch and have a hard white coating. In order to ensure a long life, the teeth on all Louet carders are made of high grade plated steel wire. All gearboxes are enclosed to prevent fibers entering the gear system. For drum carders it is common to mention the gear ratio that drives the licker-in when you rotate the large drum. However, what really counts for carding is the ratio of the surface speed of both drums, because the difference of surface speed does the carding. You get this surface speed ratio by multiplying the gear ratio with the ratio of the diameters of the large drum and the licker-in.

SPECIFICATIONS

Drum is 7 1/2" (19 cm) wide and 10" (25 cm) in diameter
Surface speed ratio is 9:1
Teeth are spaced at 72 teeth per square inch or 46 teeth per square inch
Teeth are 5/8" deep (14 mm)
Card approximately 1 ounce (45 grams) per batt
Weight 16 pounds (7 kg)

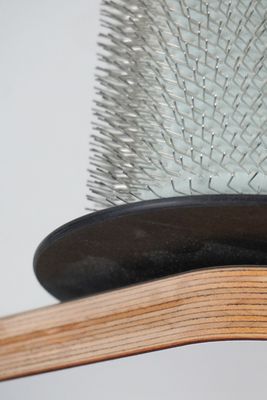

Carding teeth flexible
No pre-teasing needed
Table Clamps
Doffer Brush
Doffer Pin included

Meet The Louet Roving Carder Video
How to Clean Your Louet Drum Carder

***DRUM CARDERS SHIP DIRECTLY FROM THE MANUFACTURER*** Most of our fiber equipment is shipped directly from the manufacturer who are dealing with shortages and shipping delays during this season, resulting in some items being back-ordered, sometimes up to several months. For estimated shipping times, contact us before ordering.
